Halogen-free Trunking System

  • available in four dimensions
  • extensive range of accessories
  • length 2 m
  • RoHS/REACH compliant

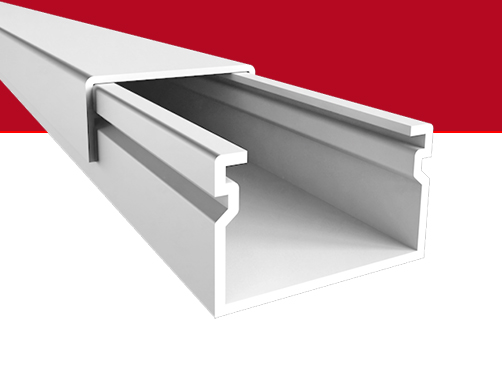

Univolt 2012,5 BLH/2012,5BADLH
2012,5BLH / 2012,5BADLH

mini trunkings
20x12,5 mm
IK 07
non adhesive/adhesive

receives switches and sockets indirectly.

to use with

  • 16 cables of 1.5 mm²
  • 11 cables of 2.5 mm²
  • 9 cables of 4 mm²
  • 6 cables of 6 mm²

For complete range of accessories and technical information see
data sheet

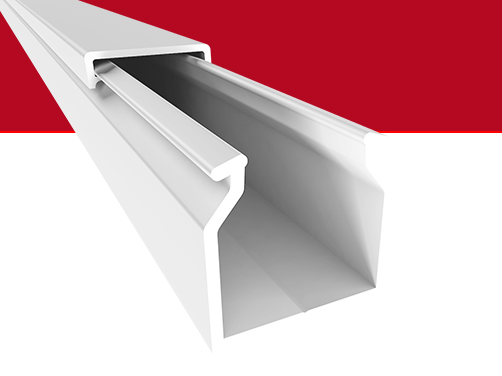

Dietzel Univolt 2020BLH/2020BADLH
2020BLH / 2020BADLH

mini trunkings
20x20 mm
IK 07
non adhesive/adhesive

receives switches and sockets indirectly.

to use with

  • 21 cables of 1.5 mm²
  • 15 cables of 2.5 mm²
  • 11 cables of 4 mm²
  • 6 cables of 6 mm²

For complete range of accessories and technical information see
data sheet

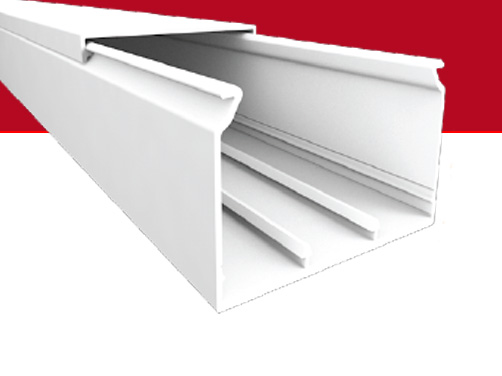

Dietzel Univolt 6040BLH trunking
6040BLH

trunking
60x40 mm
IK 07
double rail

receives switches and sockets indirectly

to use with

  • 138 cables of 1.5 mm²
  • 90 cables of 2.5 mm²
  • 72 cables of 4 mm²
  • 44 cables of 6 mm²

For complete range of accessories and technical information see
data sheet

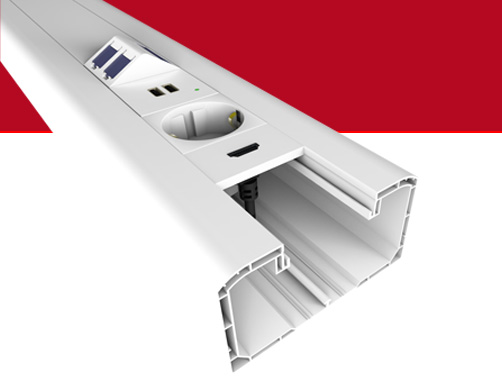

Dietzel Univolt cable trunking 10054BLH
10054BLH

trunking
100x54 mm
IK 10
direct fit

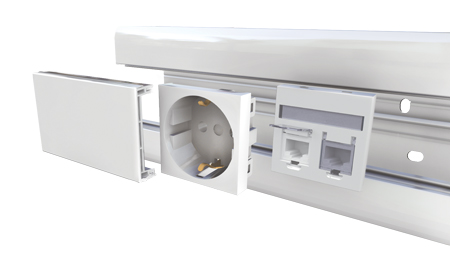

receives 45x45 and 45x90 switches and sockets directly

Dietzel Univolt cable trunking 10054BLH
For complete range of accessories and techical information see
data sheet


Download all four data sheets in a single file.
For accessories and additional information download folder.
